Introduction: The Importance of Choosing the Right Lighting
There are so many factors to consider when picking out lights for a specific space, whether it be for a house, a busy office, or a commercial spaces that all have the same goal, illuminating the space. The lights that you use greatly determine the feel, functional capabilities, and even the energy consumption of the space. Panel lights and COB (Chip on Board) lights are two affordable options that are accessible today. In this blog, we will discuss the specifics of both technologies and help make a fitting decision for your situation.
As reported by the U.S. Department of Energy, about 15 % of the electricity used in a residential and commercial building is used on lights. Ensuring that the paintings and designs of your building are complimented by the lights greatly improves aesthetics and economic savings. So with all that said, picking lights is more important than most would think.

What is COB Light?
Definition and Technology Behind COB Lights

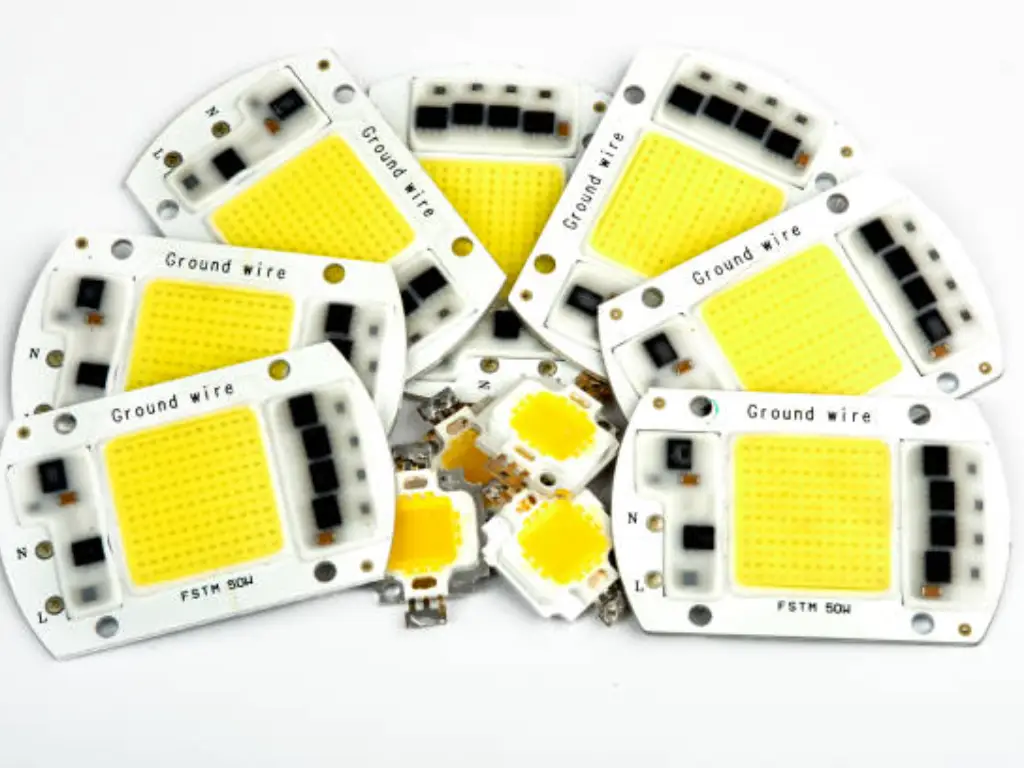

COB (Chip on Board) light technology incorporates multiple LED chips into one single module attached to a circuit board or substrate for improved efficiency and power. In simpler terms, COB is a new generation led lighting where LED chips are mounted directly onto the substrate or circuit board. With this vertical structure, there are a greater number of LED chips per area, leading to enhanced light output compared to standard LED setups.
These bulbs also provide far better light than other options, as there is no need to cover the LED dots that create each individual beam. As such, rather than casting out chunks of light, these bulbs release a more seamless and uniform illumination.
Advantages and Disadvantages of Using COB Lights
One benefit of COB lights is the focused beams with extreme brightness which emit a high intensity light. As such, they are best suited for task or accent lighting. In addition, COB lights can last over 50,000 hours which is cost effective in terms of maintenance and replacement.
On the other hand, like any other technology, COB lights do have their drawbacks. The more complex circuit design as compared to the other available LED options increases the cost of COB lights. As well, while the intensity of the light produced may be a benefit, it also makes COB lights unsuitable for any application where soft, diffused light is needed.

What is Panel Light?
Definition and Technology Behind Panel Lights
Panel lights, referred to as LED panel lights or LED flat lights, are fixtures that comprise a flat rectangular panel that contains many LED chips, casted inside bezel. These panels are designed to provide broad and uniform light output for a variety of general illumination applications and are ideal for use in various locations. The LED(SMD) chips are directly affixed to the PCB (printed circuit board) featuring the LED mounted device technology, which is more compact and thinner than existing fluorescent type fixtures.
Although most people think of LED panel lights because they are the most popular, long-lasting and energy-efficient, panel lights are nowadays available in various other technologies including fluorescent and incandescent.
Pros and Cons of Using Panel Lights
The main benefit of using panel lights is their versatility – they can be mounted on false ceilings, walls or even suspended from the ceiling. As a result, these lights can complement the designs of most modern settings very well.
Moreover, LED Panel lights have a beneficial feature; a wide beam angle, which ensures adequate lighting to large spaces and regions. Overall, they utilize approximately 20 to 30 percent of the power used by standard fluorescent lights. As a result, less power and impact on nature is less. Research suggests that installing LED panel light could reduce energy expenditure by 50 percent when compared to the fluorescent counterparts. However, these lights are not suitable for venues which required high brightness, focused beams or the use of high power COB lights due to their relatively shorter life spans of 30,000 to 40,000 hours of use.

Key Differences Between COB Light and Panel Light
Light Output and Brightness
When it comes to panel lights versus COB lights, there is no contest with brightness as the winner. COB technology enables an increase of LED chips in each light, which results in more focused and intense lighting. This makes COB lauded as the king of strong and directional lights, needed for spotlights, downlights, or task lighting. Such technology also generates brighter light with less heat, making them ideal for long use as there are no performance drops.
In contrast to COB, panel lights distribute dimmer light but focus on coverage as their main goal. While they are far from matching the competitiveness of brightness as it’s COB counterpart, panel lights are better suited for general illumination as they diffuse light and reduce glare and strain. Compared to COB panel lights do have fewer diodes, but they manage to gently light up spaces while remaining non-overwhelming.
Efficiency: Power Consumption Comparison
Both COB lights and panel lights are notable for their energy efficiency compared to traditional lighting solutions. However, there are differences in their power consumption that are worth noting.
Because of the lack of additional optical components, COB lights are able to produce a more intense lumen output per watt while consuming less power. A typical COB light achieves approximately 100-120 lumens per watt which indicates a higher efficiency rating.
Compared to fluorescent fixtures, LED panel lights have a far lower lumens per watt ratio, though they do still have a solid efficiency rating of 80-100 watts, making them a better choice for energy-conscious consumers.
Heat Management in COB vs Panel Lights
For effective usage of any LED lights, heat management is one of the most important factors. COB lights and panel lights employ different techniques for their thermal dissipation.
Because of their small sizes, COB lights are thermally more efficient. The LED chips are placed directly onto a substrate that has a heat sink. This lets the heat move away from the light source fast, allowing the COB light to operate at a stable temperature and extending its lifespan.
Panel lights have a larger surface area and are more thermally efficient than other forms of lighting. A Panel light’s heat sink or thermal management system reduces the risk of overheating. However, like smaller sized panel lights, they are not as efficient as COB lights.
Lifespan and Durability
Both COB lights and panel lights have a significantly longer lifespan compared to traditional lighting solutions. However, COB lights generally have a slight advantage in terms of durability.
COB lights, with their robust construction and fewer components, can withstand more challenging environments and are less prone to failure. They often have a lifespan of 50,000 hours or more, reducing the need for frequent replacements.
Panel lights, while still long-lasting, may have a slightly shorter lifespan due to their larger surface area and more complex construction. On average, LED panel lights can last between 30,000 to 40,000 hours, which is still impressive compared to traditional fluorescent fixtures.
In making your selection of lighting, keeping durability in mind is crucial as WOSEN is one of the top precision engineering companies that produces LED panel light fixtures. The optical elements in our LED panel lights are specially designed to be UV resistant, allowing them to stay clear instead of yellowing for more than 5 years. With a light transmittance of over 92%, a UL94 V2 fire rated housing, and greater than ordinary manufacturing tolerance, you can be confident in their quality construction. Also, all our offered products come with a standard 3-year warranty, which can then be tailored to increase to 7 years depending on the requirements of the project.
Cost Analysis: COB Light vs Panel Light
When considering costs, there are quite a few factors that come into play. Their inherently higher cost is likely to be a factor if there are no budget constraints. Initially, COB lights may need a bigger budget in comparison to panel lights due to the inclined cost of design and output lumens. Over time, however, COB lights prove to be more cost effective because of their lengthy operating hours.
Panel lights are generally more affordable upfront, making them the best choice for large-scale installations or budget-conscious projects. Although not as cost efficient as traditional lighting, they are certainly a more economical option than COB lights.
In the end, when setting a balance between initial purchasing investment, energy use, maintenance, and deciding between COB lights and panel lights, it’s important to examine the total cost of ownership. Carefully consider your requirements for the best solution before making the decision between the adjustable light of COB and the reliable use of LED panel lights.
Feature | COB Lights | Panel Lights |
Light Output | High intensity, focused beams | Even, diffused illumination |
Power Consumption | 100-120 lumens per watt | 80-100 lumens per watt |
Lifespan | Over 50,000 hours | 30,000 to 40,000 hours |
Heat Management | Compact design for efficient cooling | Larger surface area for thermal management |
Ideal Applications | Task and accent lighting, outdoors | General illumination, commercial and educational spaces |
Cost | Higher initial cost, lower long-term | Lower upfront cost, moderate energy savings |
Application Scenarios: Where to Best Use COB and Panel Lights
Ideal Scenarios for Panel Lights
Office Spaces and Commercial Buildings: Panel lights provide a comfortable context to work in meeting spaces or work desks since it gives even illumination while reducing glare. A comfortable working environment is also helpful for long hours spent in any office space.

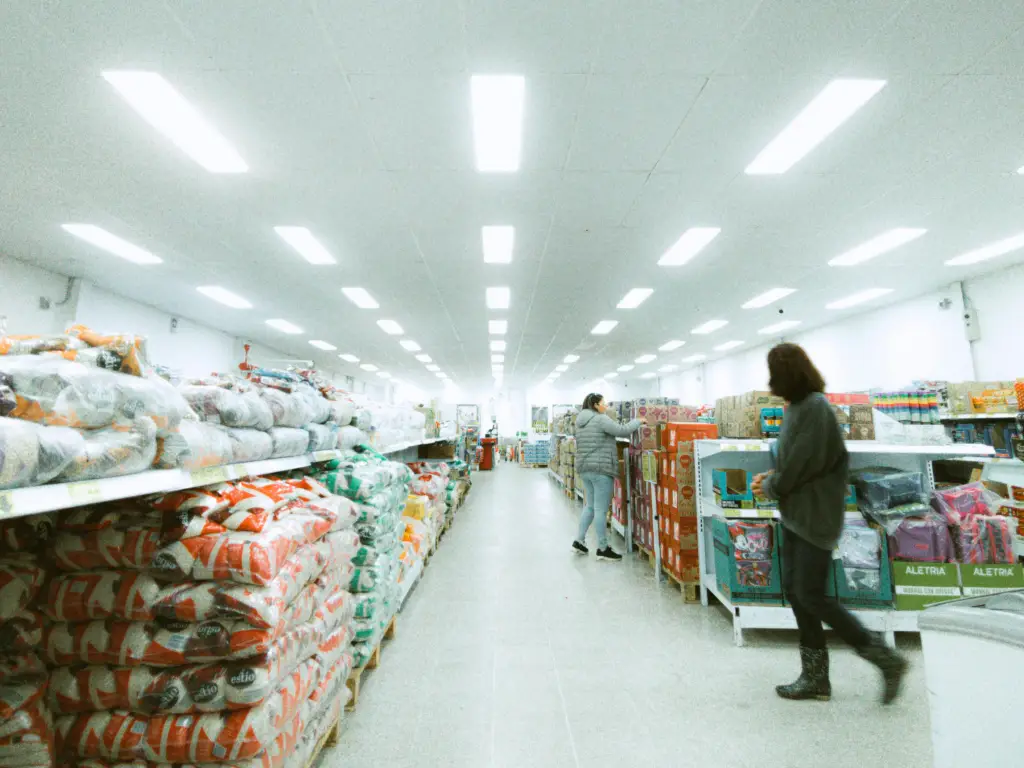

Retail Stores and Supermarkets: In a retail context, panel lights are useful as they improve the visibility of products while creating a warm environment which stimulates customers, making it easier to sell goods. The even distribution of light from commercial panel lights makes it easy for customers to see what is on offer.
Schools and Educational Institutions: These panel lights were specifically designed to provide flicker free and glare free light, which enhances the learning and teaching experience. Students are able to concentrate better when their eyes do not have to work overtime because of the comfortable lighting panel lights provide.
Healthcare Facilities: The light emitted from the panel lights is soft and diffused ensuring that the patients feel comfortable and relaxed. A calming environment is very important in areas like waiting rooms and patient care areas and these lights ensure that this is the case.
Museums and galleries: Museums and galleries with light-sensitive works of art rely on effective and non-intrusive lighting techniques. Panel lights are adjusted to different color temperatures in order to accentuate a particular display. They are also essential in preventing damage to pieces of artwork and ensuring that they are always well lit. The use of light can be very deceptive; however, if handled poorly, it can be destructive. Improper lighting can ruin sensitive materials, while accurate lighting ensures an interesting experience for visitors.

Ideal Settings for COB Lights
COB lights are ideal for situations where a high-focused and high-intensity light is required. In such scenarios, the following positions are ideal for making use of COB lights:
Task lighting: Because of the focus of the beam emitted, COB lights are ideally suited for workbenches, reading areas, or any other piece of infrastructure that needs directed lighting.
Accent lighting: Because COB lights can emit such a high level of light, it can perfectly enhance artwork or sculptures, certain architectural features, or product displays for better visibility.

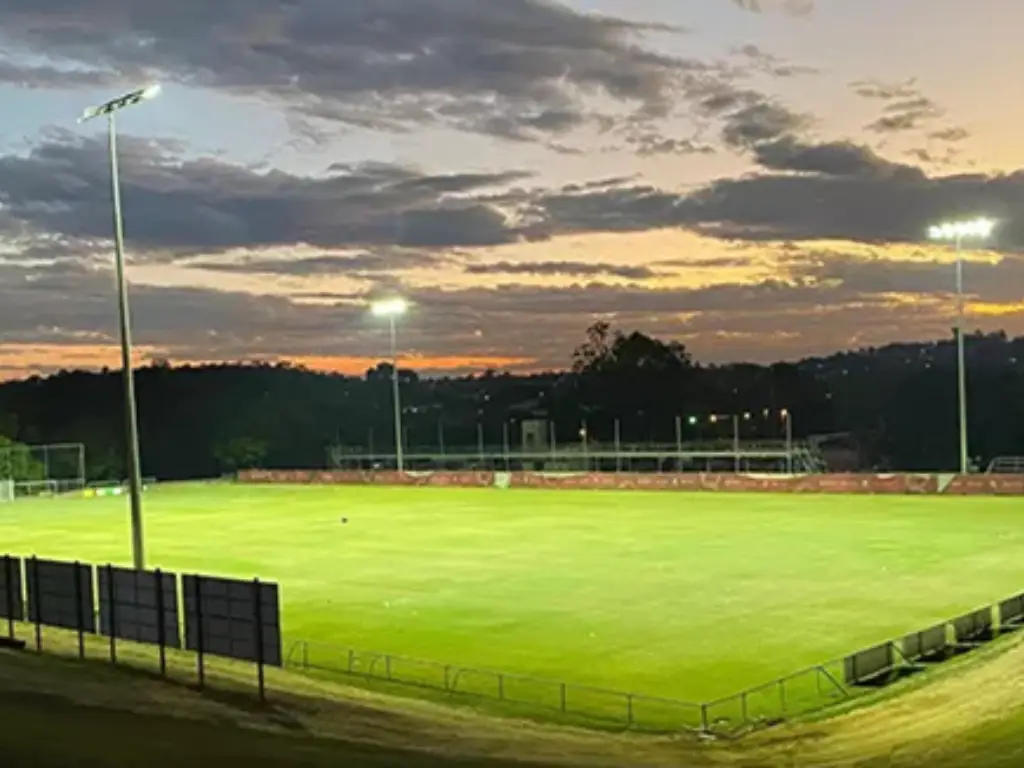

Outdoor equipment: The ruggedness of COB lights, along with high lumen output, makes them ideal for outdoor activities like landscape lighting, security lighting, and illumination of signage.
Automotive and transportation: Internal and external lights of various vehicles, including the headlights, taillights, and other parts are commonly manufactured using COB lights. This is due to the compact size and high power of the COB lights.
Conclusion: Choosing Between COB and Panel Lights
There is distinction between COB lights and panel lights, and choosing which of the two to use depends on the reason you are putting them up to begin with. Do assess the amount of bright light you want, the beam angle of the light, as well as how much energy it uses, its lifespan, and of course the cost.
If you are looking for a narrow, focused light source for tasks such as lighting for outdoor activities, COB lights could be a better fit. They lumens output is high, and the design is compact with excellent heat dissipation, meaning that they are both efficient and reliable. If you want a light source for complex and intricate tasks, COB lights are for you.
Now, if you want something that emits light evenly at all angles for a wider range of applications such as at an office, retail store, or even healthcare facilities, then we recommend using panel lights. Panel lights do not only save energy but they are very cost efficient too and at the same time avert glare while providing comfortable lighting.
No matter what you select, whether it is COB light or panel light, both perform impressively well in the area of illuminating solutions. They are each equipped with substantial gains when it comes to energy saving, lifespan, and general performance compared to conventional lighting. Understanding the advantages that each type of technology offers will assist you in deciding which option will enhance your area the best in terms of styling and functionality.
So, whether it’s option panel lights flexibility or the bright illumination from COB you prefer, understanding lighting is simply a decision away!
